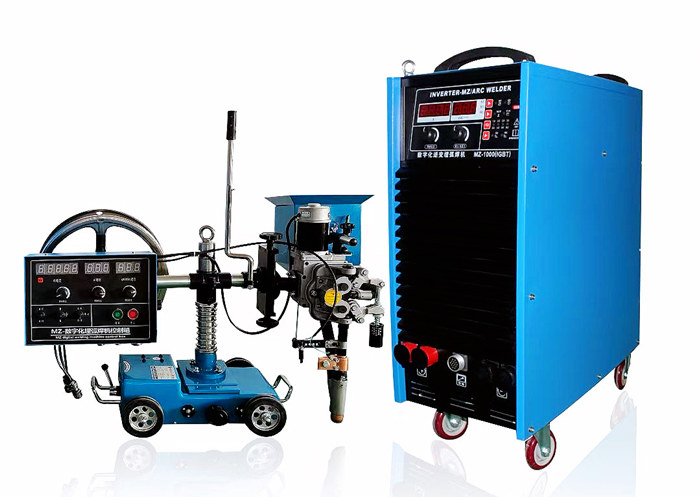

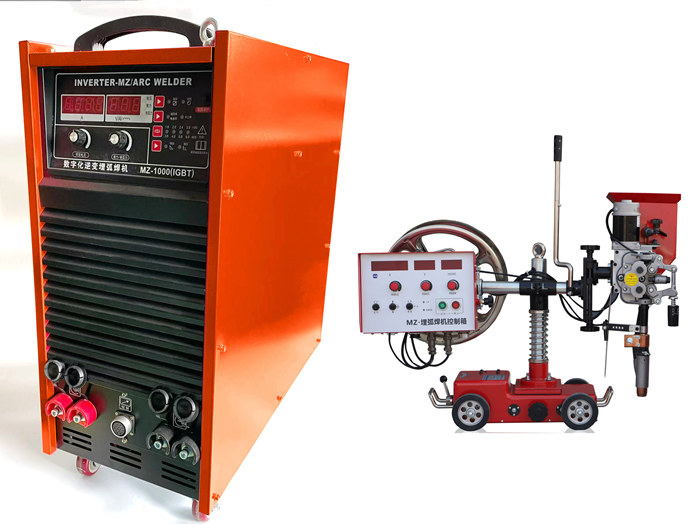

SUBMERGED ARC WELDING (SAW)-1000, 1250



Features:



l    The use of single-chip microcomputer and CPLD control technology realizes digital control of the welding process, improves control accuracy and reduces failure rate.

l    IGBT inverter technology ensures that the welding current is highly stable when the grid voltage fluctuates and the arc length changes, and has strong arc regulation ability and high arc initiation success rate.

l    With constant current, constant voltage characteristics, and wire diameter selection function, the special machine can realize the welding of various materials

l    Compatible with manual welding, electroslag welding, carbon arc gouging and other functions.

l    With overheat, short circuit and overload protection functions.

l    Channel storage function can store 10 sets of welding parameters for easy call.

l    Standard submerged arc welding wire feeding trolley, stable operation.





项目Item

SAW 1000

SAW 1250

输入电源电压频率(V/HZ

Input   Voltage Frequency

AC380V ±15%   50/60HZ

AC380V ±15%   50/60HZ

额定输入电源容量   (KVA)

Rated   Output Power Capacity

55

69

额定输出电压 (V)

Rated Output Voltage

44

44

额定输入电流   (A)

Rated   Input Current (A)

83

115

空载电压 (V)

Non-load Voltage

SAW 84

Arc 82

SAW 92

Arc 88

输出电流调节范围(A

Output   Current Range

50-1000A

50-1250A

负载持续率(%)(25

Duty Cycle

100%

100%

效率(%

Efficiency

95

95

绝缘等级

Insulation   Class

F

F

外壳防护等级

Enclosure   Protection Class

IP21S

IP21S

功率因数cosΦ

Power   Factor

0.85

0.85

焊条直径

Suitable   Electrode Diamater (mm)

2-6

2-6

焊丝直径

Wire   Diameter (mm)

2.0-6.0

2.0-6.0

尺寸   (mm)

Case   size (mm)

822x365x894

822x365x894
