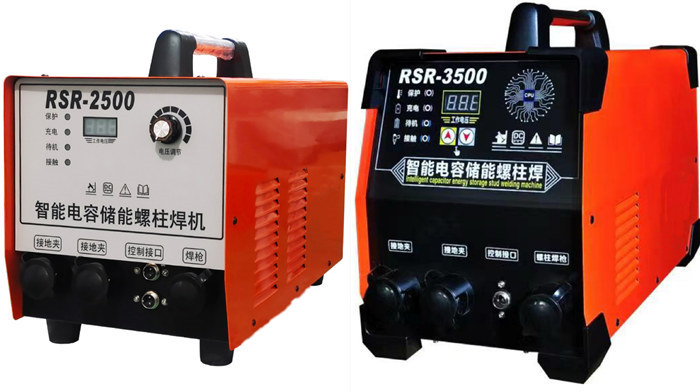

ENERGY STORAGE STUD (RSR 1600, 2500, 3500)




项目Item

RSR   1600

RSR   2500

RSR   3500

输入电源电压频率(V/HZ)

Input Voltage Frequency

AC220V ±15% 50/60HZ

AC220V ±15% 50/60HZ

AC220V ±15% 50/60HZ

适用规格

Suitable Stud Size

M3-M6

M3-M8

M3-M10

输出电压 (V)

Output   Voltage

35-202

35-202



35-202



焊接速度

Welding Speed/Minute

10-30 pcs

10-30 pcs

10-30 pcs

焊接厚度

Welding Thickness (mm)

0.5-5 mm

0.5-5 mm

0.5-5 mm

外壳防护等级

Enclosure Protection Class

IP21S

IP21S

IP21S

尺寸

Case Size (mm)

400x240x330

515x240x330

515x240x330

Features

Smart button   adjustment, easy for beginners to use, fast charging completed in 1 second

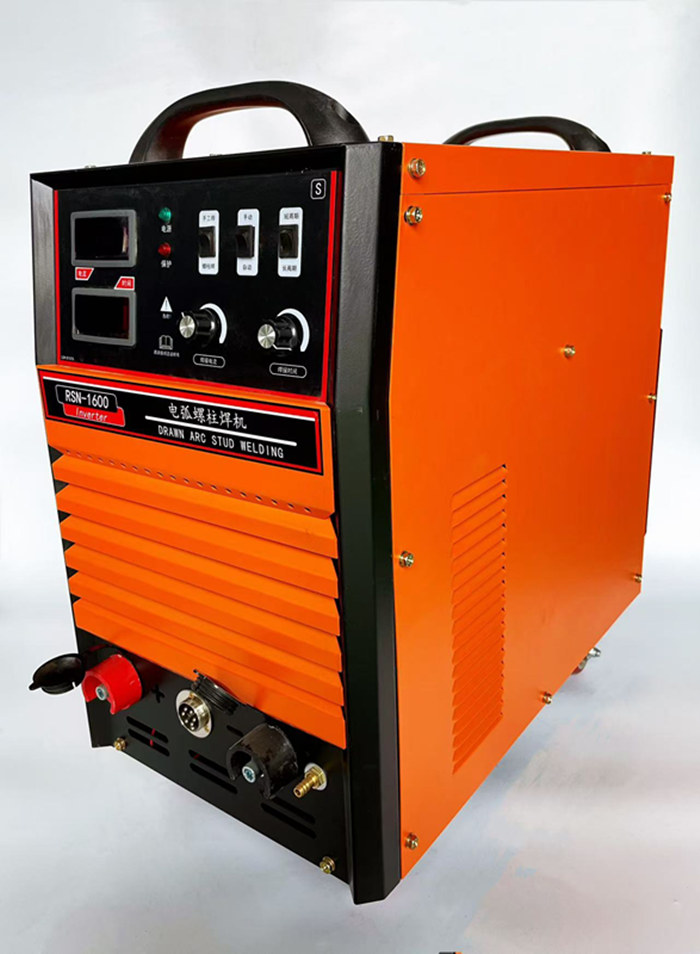

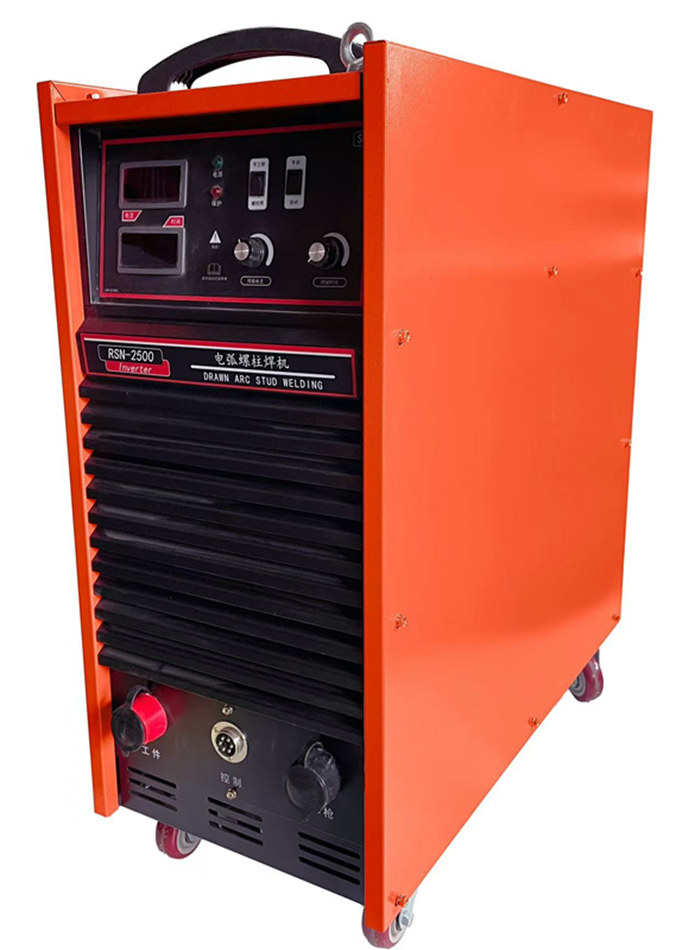

DRAWN ARC STUD WELDER SERIALS (RSN 1600, 2500, 3150)


RSN series arc stud welding machine is a high-efficiency welding equipment suitable for welding carbon steel, stainless steel, copper, aluminum and alloy studs with corresponding metal parts. The equipment has a series of advantages such as short welding time, high production efficiency, strong adaptability, small welding deformation, good joint quality, material saving, simplified production equipment and process, etc. It is widely used in building steel structures, bridges, locomotives, ships, boilers, industrial furnaces and other fields.





Features:



l    Inverter soft switching technology, small size, light weight, energy saving and environmental protection.

l    The internal structure is modularly designed, with perfect protection functions and IGBT modules, making the whole machine safe and reliable with low failure rate.

l    Stepless adjustment of welding current, adjustable welding time, and digital display of welding parameters.

l    Manual and automatic control can be switched at will to adapt to various welding processes.



项目Item

RSN   1600

RSN   2500

RSN   3150

输入电源电压频率(V/HZ)

Input Voltage Frequency

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

可焊栓钉直径

Suitable Stud   Diameter (mm)

4-16

8-25

8-32

 可焊栓钉长度

Suitable   Stud Length (mm)

≤400

≤400

≤400

焊枪电压 (V)

Torch Voltage (V)

110VDC

110VDC

110VDC

空载电压 (V)

Non-load Voltage

75

86

86

输出电流调节范围(A)

Output Current Range

100-1600A

300-2500A

300-3150A

负载持续率(%)(25℃)

Duty Cycle

20%

20%

20%

效率(%)

Efficiency

90

90

90

绝缘等级

Insulation Class

F

F

F

外壳防护等级

Enclosure Protection   Class

IP21S

IP21S

IP21S

尺寸 (mm)

Case size (mm)

620x358x695

822x365x894

822x365x894
