PLASAM CUT SERIES Features:

l  Advanced design, high inverter frequency, high load duration, energy saving and power saving.

l  Super small size, super light weight, easy to carry, especially suitable for outdoor mobile operations.

l  Use cheap compressed air as cutting air source, which is more economical and efficient than flame cutting.

l  Compared with the traditional cutting machine, it has the advantages of high success rate of arc ignition, high arc pressure, concentrated energy, strong cutting ability, fast cutting speed, narrow slit, smooth cut, and small deformation.

l  It can cut arbitrary curves on metal plates of different thickness.

l  The cutting current is continuously adjustable, accurate and intuitive.

l   Built-in protection circuits for overheating, overcurrent, overvoltage, etc., for safe operation.

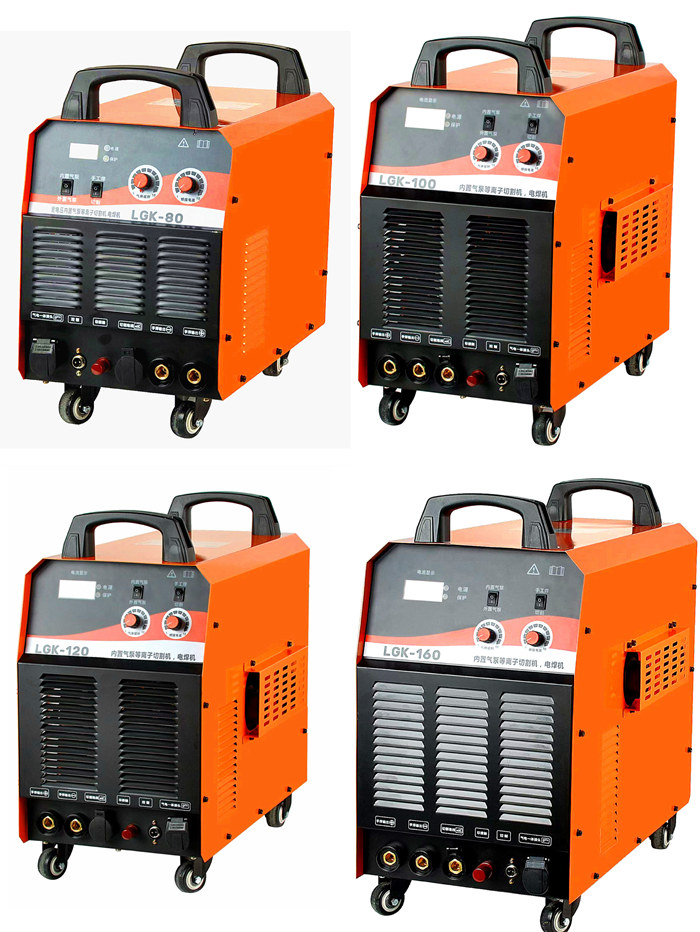

项目Item

Cut-60

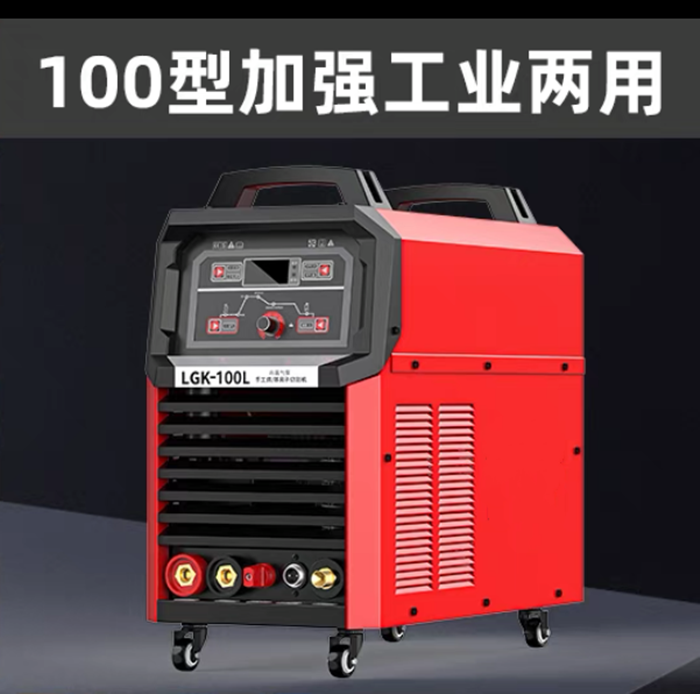

Cut-100

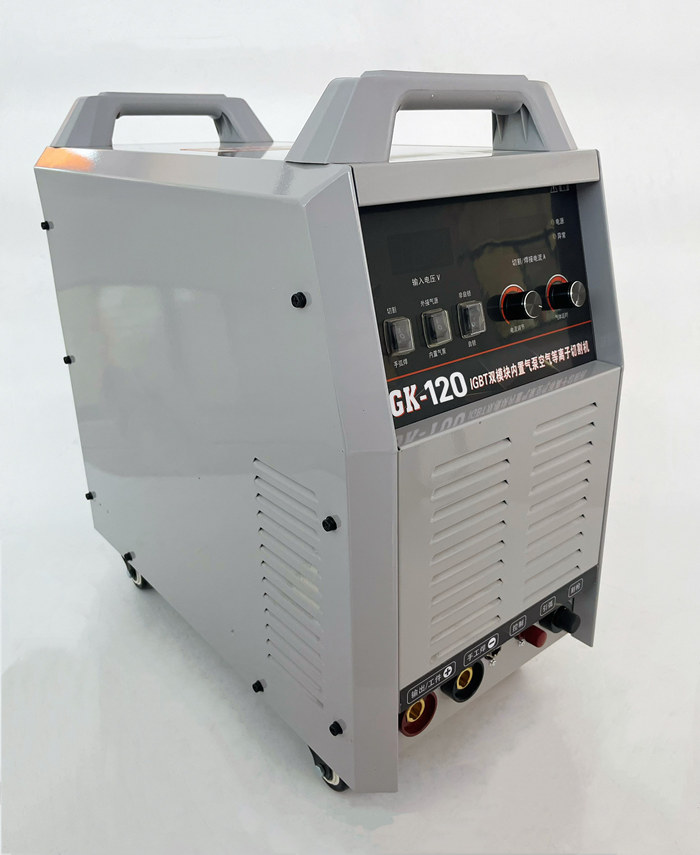

Cut-120

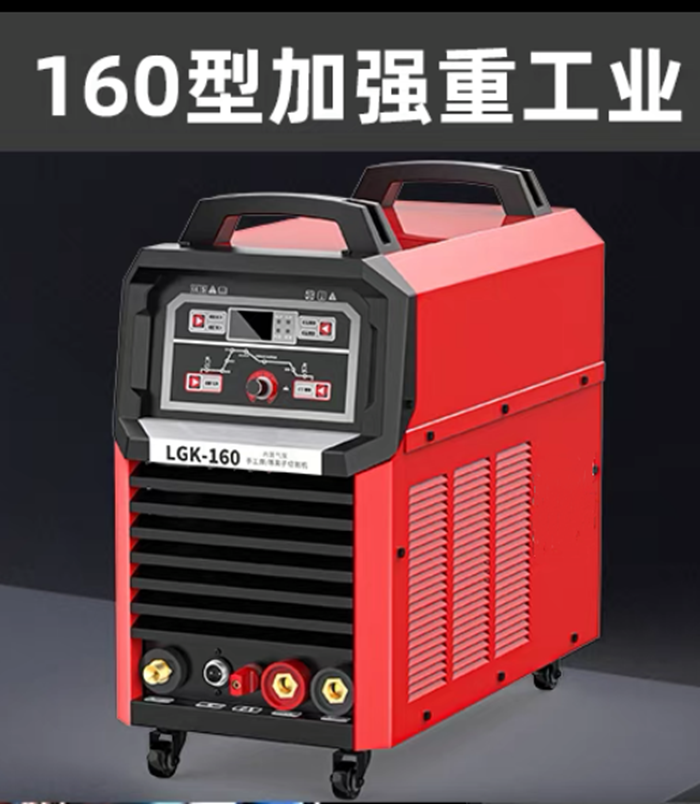

Cut-160

输入电源电压频率(V/HZ)

Input Voltage Frequency

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

额定输入电源容量 (KVA)

Rated Output Power   Capacity

8

29

38

47

空载电压 (V)

No-load Voltage

62

278

296

320

输出电流调节范围(A)

Output Current Range

10-60

40-100A

40-120A

40-160A

负载持续率(%)(25℃)

Duty Cycle

60

60

60

60

冷却方式

Cooling method

Air-cool

Air-cool

Air-cool

Air-cool

绝缘等级

Insulation Class

F

F

F

F

外壳防护等级

Enclosure Protection   Class

IP21S

IP21S

IP21S

IP21S

引弧方式

Arc Strike Method

Untouch

Untouch

Untouch

Untouch

最大切割厚度(mm)

Max Cutting Thickness

22

40

45

50









项目Item

Cut-200

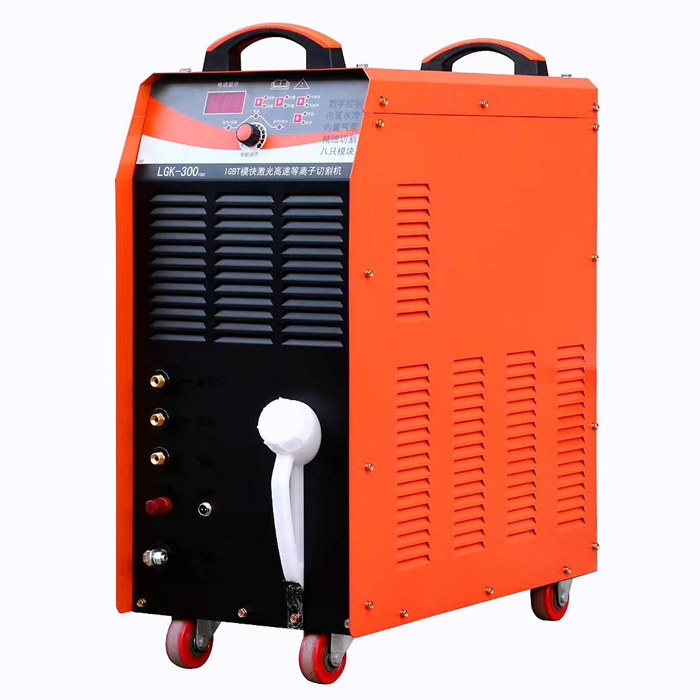

Cut-300

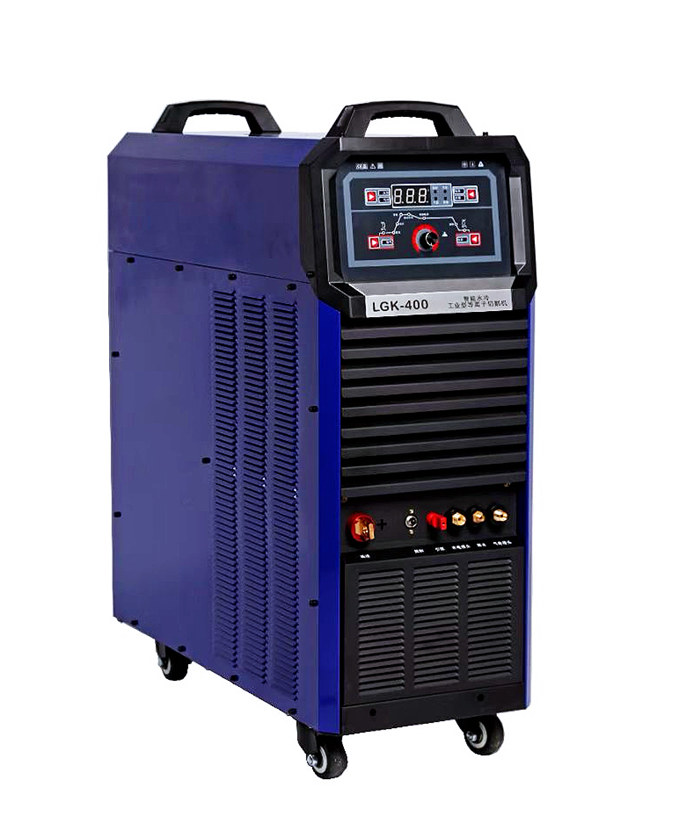

Cut-400

输入电源电压频率(V/HZ)

Input Voltage Frequency

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

额定输入电源容量 (KVA)

Rated Output Power   Capacity

61

76

85

空载电压 (V)

No-load Voltage

320

330

330

输出电流调节范围(A)

Output Current Range

40-200A

40-300A

40-400A

负载持续率(%)(25℃)

Duty Cycle

60

60

60

冷却方式

Cooling method

Air and Water Cool

Air and Water Cool

Air and Water Cool

绝缘等级

Insulation Class

F

F

F

外壳防护等级

Enclosure Protection   Class

IP21S

IP21S

IP21S

引弧方式

Arc Strike Method

Untouch

Untouch

Untouch

最大切割厚度(mm)

Max Cutting Thickness

65

100

120

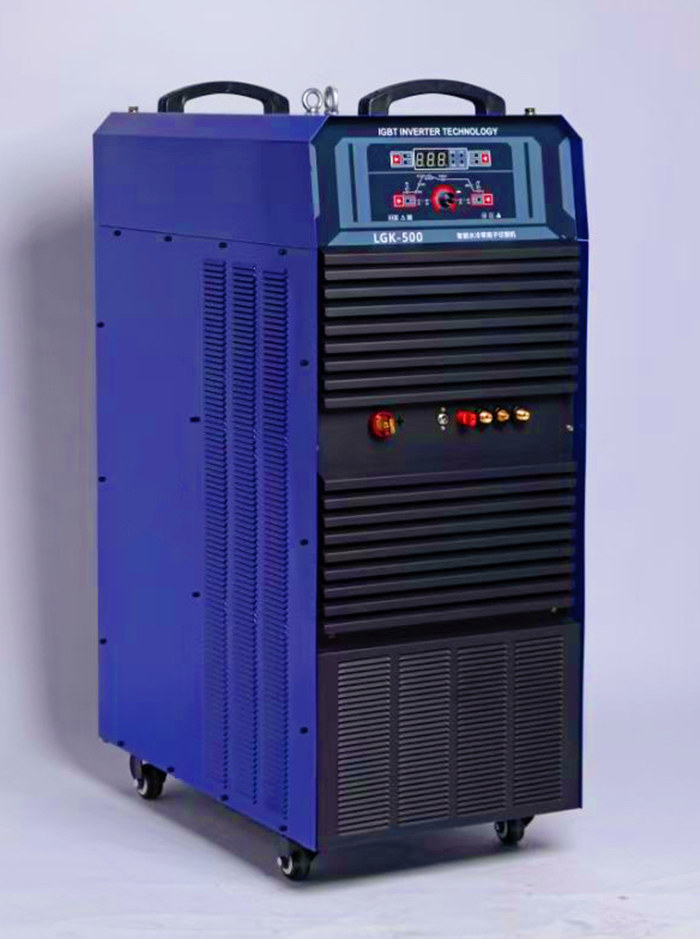

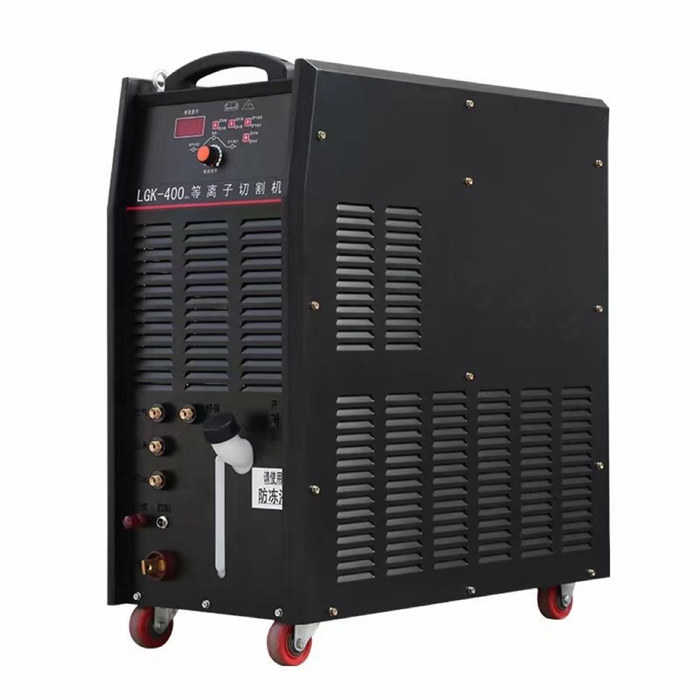

CUT 200, 300, 400, 500 Inbuilt Pump type and CNC type both can be provided.
