MIG Series Features:

l  With stable arc transition, little spatter, good design, and high-quality welds.

l  Advanced circuit design to reduce switching loss. The power components generate less heat, which greatly improves the overall machine rate and load duration rate.

l  Lightweight, efficient, and energy-saving, the higher inverter frequency greatly reduces power loss, and the power saving effect is significant.

l  The welding current and voltage are continuously adjustable, which can meet the needs of different welding processes.

l  Simple and advanced circuit design, reliable performance, complete function, and convenient for automatic welding.

l  Fast over-current protection circuit, suitable for continuous work.

l  Mainly used for welding various welding positions of carbon steel, low alloy steel, stainless steel and other ferrous metal materials. Above 350A Models are widely used for welding ships, automobiles, bridges, steel structures, etc., models below 250A are especially suitable for thin plate welding.


Gasless MIG 200 for 1KG Flux-core Wire Use Without Gas.

MIG 250 for 5KG Flux-core Wire Use Without Gas and for 5 KG Solid wire with Gas together.


项目Item

Gasless MIG 200

Gasless MIG 250

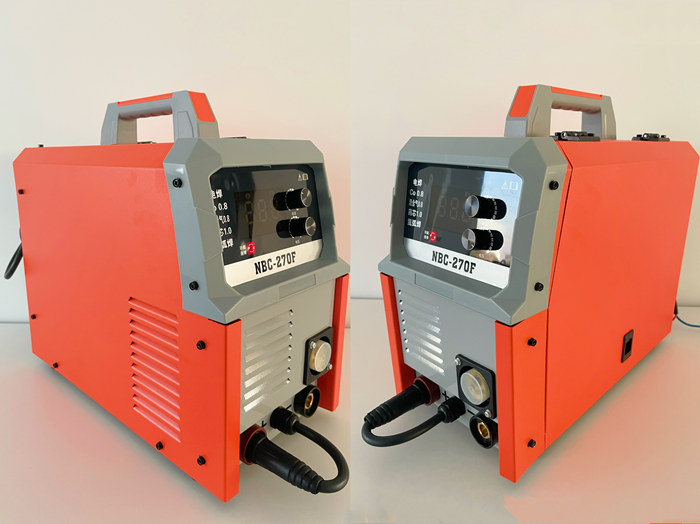

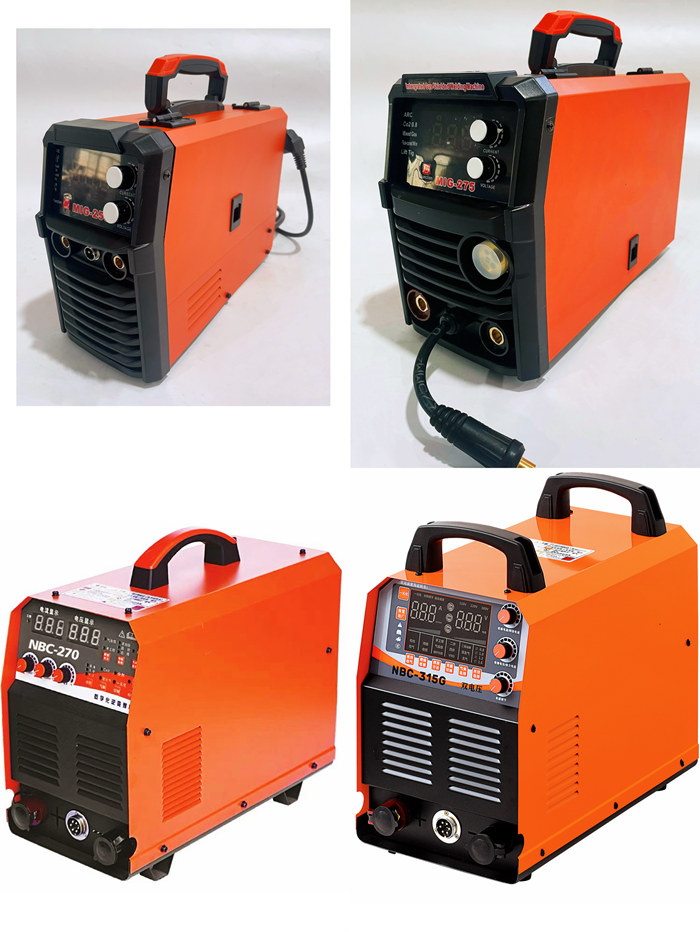

MIG 270

MIG 270

输入电源电压频率(V/HZ)

Input Voltage Frequency

AC220V±15% 50/60HZ

AC220V±15% 50/60HZ

AC220/380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

额定输入电源容量   (KVA)

Rated Output Power   Capacity

3.5

5.5

10.5

10.5

输出电压调节范围 (V)

Output Voltage Range

17-22

17-26.4

14-32

14-32

输出电流调节范围(A)

Output Current   Range

20-120

20-160

40-270

40-270

负载持续率(%)(25℃)

Duty Cycle

60

60

60

60

效率(%)

Efficiency

85

85

85

85

绝缘等级

Insulation Class

F

F

F

F

外壳防护等级

Enclosure   Protection Class

IP21S

IP21S

IP21S

IP21S



适合焊丝 (mm)

Suitable Wire Diameter

Max 1KG 0.8-1.0 Flux Core wire no gas;

Max 5KG 0.8-1.0 Flux-core wire no gas;

Max 5KG Solid Wire with Gas

0.8-1.0

0.8-1.0

尺寸 (mm)

Case Size (mm)

330x165x255

420x220x330

490x255x445

490x255x445




项目Item

MIG 315 LED Type

MIG 350 Digital

MIG 350 LED Type

MIG 500 Digital

输入电源电压频率(V/HZ)

Input Voltage Frequency

AC220/380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

额定输入电源容量   (KVA)

Rated Output Power   Capacity

10.5

13.7

13.7

24.4

输出电压调节范围 (V)

Output Voltage Range

14-32

14-35

14-35

14-45

输出电流调节范围(A)

Output Current   Range

40-270

40-350

40-350

40-450

负载持续率(%)(25℃)

Duty Cycle

60

60

60

60

效率(%)

Efficiency

85

85

85

85

绝缘等级

Insulation Class

F

F

F

F

外壳防护等级

Enclosure   Protection Class

IP21S

IP21S

IP21S

IP21S



适合焊丝 (mm)

Suitable Wire Diameter

0.8-1.0

0.8-1.2

0.8-1.0 heavy use

1.2 speed slow

0.8-1.2

0.8-1.0 heavy use

1.2 speed slow

0.8-1.2

0.8-1.0 heavy use

1.2 Continue use

尺寸 (mm)

Case Size (mm)

490x255x445

515x265x515

515x265x515

555x285x550

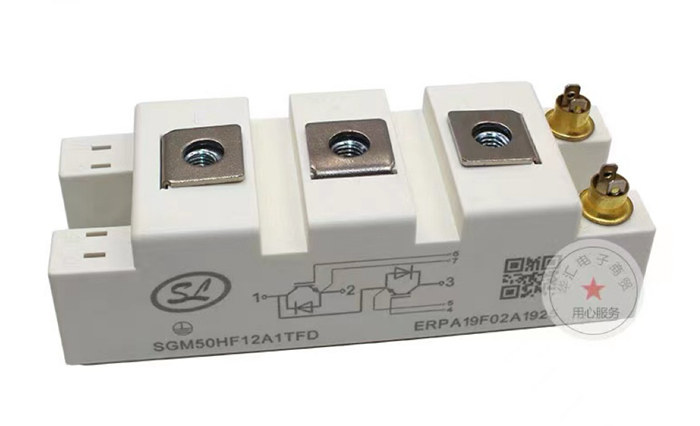

SL BRAND IGBT MOUDLE ALSO CAN BE CUSTOMIZED FOR MIDDLE AND HIGH CALSS MARKET.


项目Item

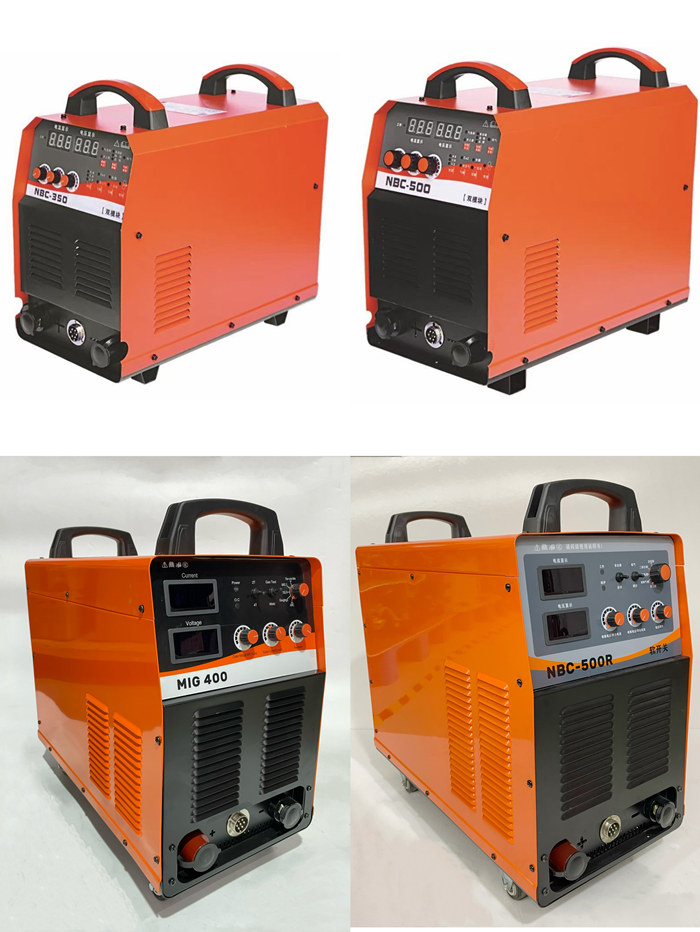

MIG 350 Big Control

MIG 500 Big Control

MIG 350 Big Control

MIG 500 Big Control

输入电源电压频率(V/HZ)

Input Voltage Frequency

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

开关驱动方式

Switch Drive Method

Hard Switch Drive

Hard Switch Drive

Soft Switch Drive

Soft Switch Drive

额定输入电源容量 (KVA)

Rated Output Power Capacity

13.7

24.4

13.7

24.4

输出电压调节范围 (V)

Output Voltage Range

14-35

14-45

14-40

17-50

输出电流调节范围(A)

Output Current Range

40-350

40-450

40-350

40-500

负载持续率(%)(25℃)

Duty Cycle

60

60

60

60

效率(%)

Efficiency

85

85

85

85

绝缘等级

Insulation Class

F

F

F

F

外壳防护等级

Enclosure Protection Class

IP21S

IP21S

IP21S

IP21S



适合焊丝 (mm)

Suitable Wire Diameter

0.8-1.2

0.8-1.0 heavy use

1.2 speed slow

0.8-1.2

0.8-1.0 heavy use

1.2 Continue use

0.8-1.2

0.8-1.0 heavy use

1.2 Continue use

0.8-1.2 heavy use

1.6 wire speed slow

尺寸 (mm)

Case Size (mm)

571x295x565

571x295x565

571x295x565

635x320x615

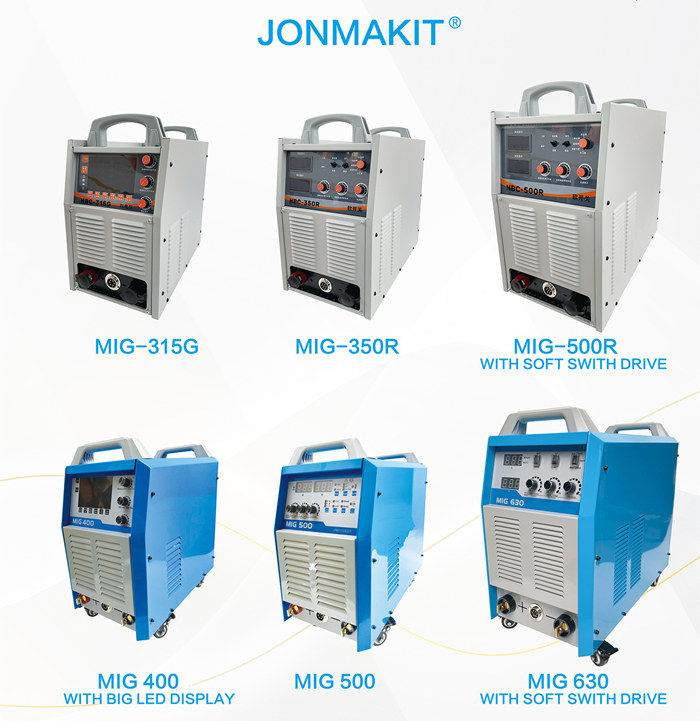

项目Item

MIG 500 Big Control   Pro

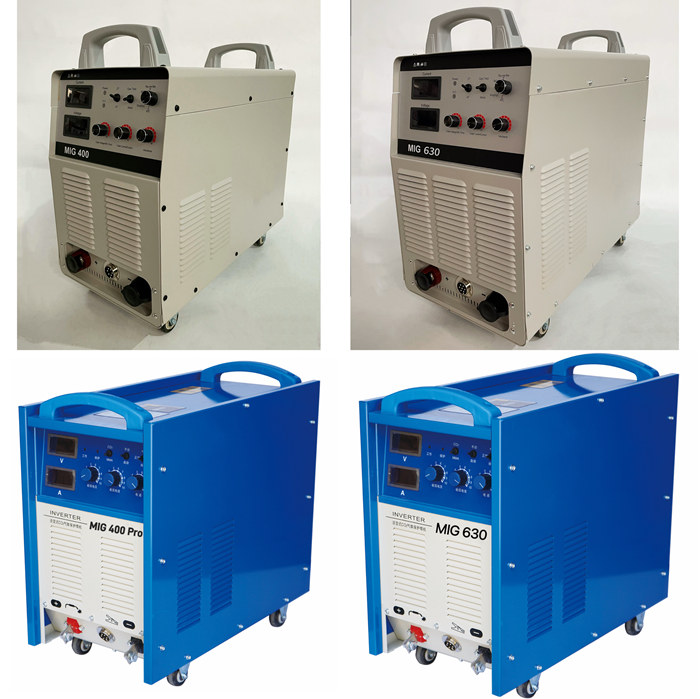

MIG 400 Pro

MIG 630

输入电源电压频率(V/HZ)

Input Voltage Frequency

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

开关驱动方式

Switch Drive Method

Soft Switch Drive

Soft Switch Drive

Soft Switch Drive

额定输入电源容量   (KVA)

Rated Output Power   Capacity

24.4

13.7

34

输出电压调节范围 (V)

Output Voltage Range

17-50

14-40

17-50

输出电流调节范围(A)

Output Current   Range

40-500

40-400

40-600

负载持续率(%)(25℃)

Duty Cycle

80

100

100

效率(%)

Efficiency

85

85

85

绝缘等级

Insulation Class

F

F

F

外壳防护等级

Enclosure   Protection Class

IP21S

IP21S

IP21S



适合焊丝 (mm)

Suitable Wire Diameter

0.8-1.2 heavy use

1.6 continue

0.8-1.2 heavy use

0.8-1.6 heavy use

尺寸 (mm)

Case Size (mm)

635x320x615

642x325x605

642x325x605




ABOVE CASE METAL CASE DESIGN ALL CAN BE PROVIDED, OTHER KIND CASE ALSO CAN BE CUSTOMIZED.
