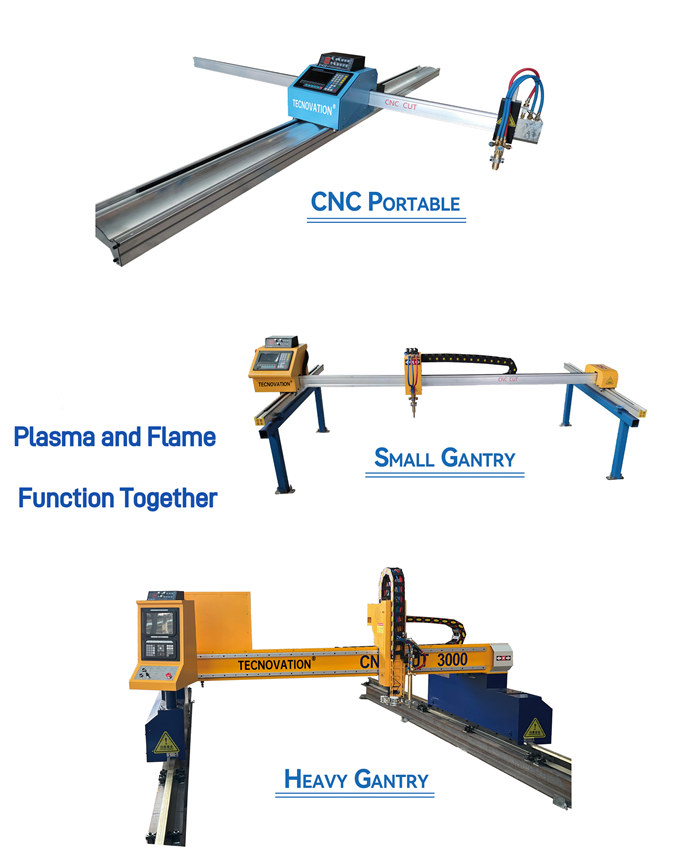

CNC PORTABLE AND GANTRY CUTTERS


Portable CNC Features:

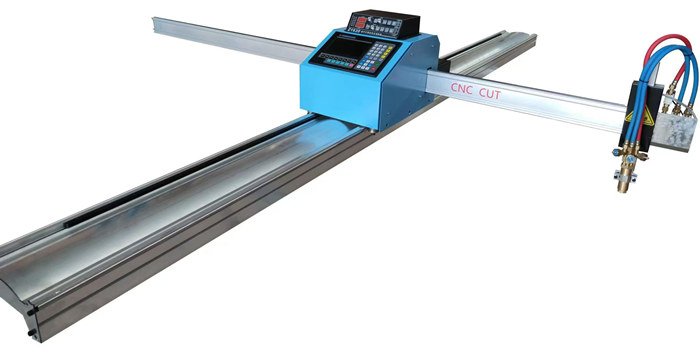

Portable CNC cutting machine (Little Bee CNC cutting mac Port Portable CNC cutting machine (Little Bee CNC cutting machine)



Structure: two motors, one guide rail, and one beam.

Configuration: dual-use for equal fire (with arc voltage height adjustment)

 Advantages:

A. The guide rail is a heavy-duty arched aluminum alloy guide rail, the aluminum alloy beam is widened and thickened, and the main machine bottom plate and vertical plate are all made of aluminum alloy processing center with high precision.

B. The guide wheel uses a 39 mm large wheel.

C. The accessories are boxed with complete machine accessories, which is neater to pack. D. The control line and power line use drag chain rubber wire, which is anti-freeze and anti-bending.

E. Export wooden box packaging.

F. The size standard is an effective 1.5 meters wide by 3 meters long.ch is anti-f


Standard Size: Portable 1530, 1560

THC Choice: Z1620, F1621P, F1621 V3.0b

Controller: F2100Bdi




Small Gantry CNC Features:


Small gantry CNC cutting machine (portable dual-drive small gantry CNC cutting machine)

Structure: 3 motors, 2 guide rails, and a beam.



Configuration: dual-use for equal fire (with arc voltage height adjustment)

Size: The standard is 2.5 meters wide and 6 meters long (model 2560), 2.5 meters wide and 3 meters long (model 2530)

Some customers think that the beam is 2.5 meters wide and will become 1.8 meters, or other sizes, without reducing the price.

Adding the length separately requires a fee.



Advantages:

A. The whole machine has been reasonably light, stable and non-deformed through multiple experiments. Compared with similar products of the same industry, the cutting speed is faster and more stable.

B. The main machine bottom plate and vertical plate are all made of aluminum alloy processing center with high precision.

C. The guide wheel uses a large 39 mm wheel.

D. The accessories are in the whole machine accessory box, which is neater to pack.

E. The control line and power line use drag chain rubber line, which is anti-freezing and anti-bending.

F. Relatively portable, this dual-drive dual-track has fast cutting speed and good cutting shape.e

 standard is

Standard Size: Portable 2530, 2560

THC Choice: Z1620, F1621P, F1621 V3.0b

Controller: F2100Bdadvantages: Because it is a single track, cantilever style, th
