TIG WELDER SERIAS



Features:



l    High-efficiency inverter technology‌: argon arc welding machine adopts advanced inverter technology, with an operating frequency of up to 100kHz, small size and light weight‌

l    High-performance arc ignition design‌: It adopts high-frequency boost arc ignition and pulse heat arc ignition design, with excellent arc ignition performance and sufficient welding current‌

l    Protection function‌: It has overvoltage and overcurrent protection functions to ensure safe use

l    Output characteristics‌: The unique output characteristic design is more suitable for wire welding and the weld is beautiful‌.

l    Durability‌: Excellent workmanship, reliable and durable, easy to maintain‌.

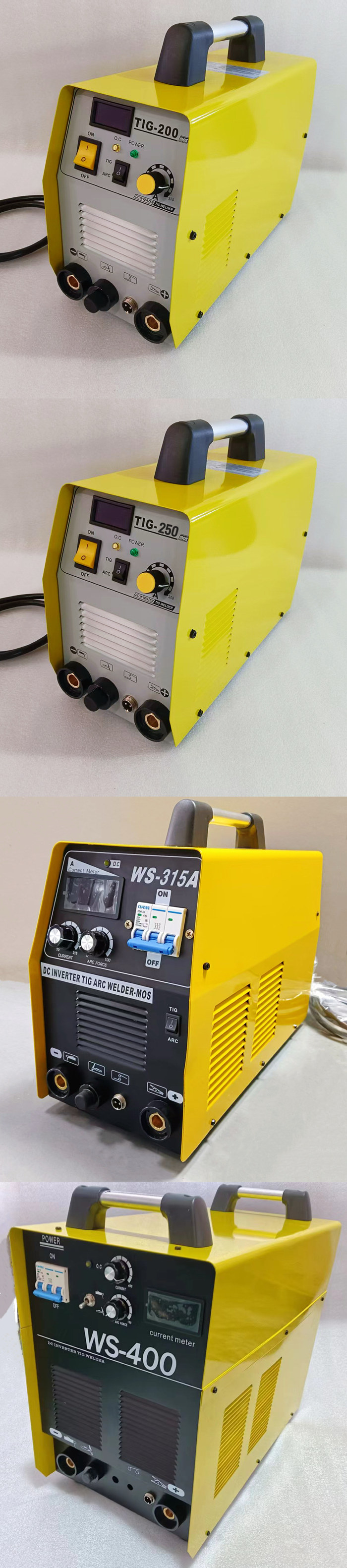

 Mos TIG 200, 250


项目Item

TIG   200

TIG   250

输入电源电压频率(V/HZ)

Input Voltage Frequency

AC220V ±15% 50/60HZ

AC220V ±15% 50/60HZ

额定输入电流 (A)

Rated   Input Current (A)

TIG   19.1

Arc   30.9

TIG   5.2

Arc   8.2

额定输入电源容量 (KVA)

Rated   Output Power Capacity

TIG   4.4

Arc   7.1

TIG   5.2

Arc   8.2

空载电压 (V)

Non-load Voltage

59

59

输出电流调节范围(A)

Output   Current Range

10-160A

10-180A

负载持续率(%)(25℃)

Duty Cycle

40%

40%

效率(%)

Efficiency

85

85

绝缘等级

Insulation Class

F

F

外壳防护等级

Enclosure Protection Class

IP21S

IP21S

功率因数cosΦ

Power Factor

0.85

0.85

尺寸 (mm)

Case size (mm)

380x150x300

380x150x300




Mos TIG 300, 300S, 400


项目Item

TIG   300

TIG   300S

TIG   400

输入电源电压频率(V/HZ)

Input Voltage Frequency

AC220V ±15% 50/60HZ

AC380V ±15% 50/60HZ

AC380V ±15% 50/60HZ

额定输入电流 (A)

Rated   Input Current (A)

TIG   29.5

Arc   43.5

TIG   6.8

Arc   10.4

TIG   13.5

Arc   19.3

额定输入电源容量 (KVA)

Rated   Output Power Capacity

TIG   6.5

Arc   10

TIG   4.9

Arc   7.5

TIG   9.7

Arc   13.9

空载电压(V)

Non-load Voltage

59

65

65

输出电流调节范围(A)

Output   Current Range

20-210A

20-210A

30-330A

负载持续率(%)(25℃)

Duty Cycle

40%

40%

40%

效率(%)

Efficiency

85

85

85

绝缘等级

Insulation Class

F

F

F

外壳防护等级

Enclosure Protection Class

IP21S

IP21S

IP21S

功率因数cosΦ

Power Factor

0.85

0.85

0.85

尺寸 (mm)

Case size (mm)

500x200x380

500x200x380

560x305x500

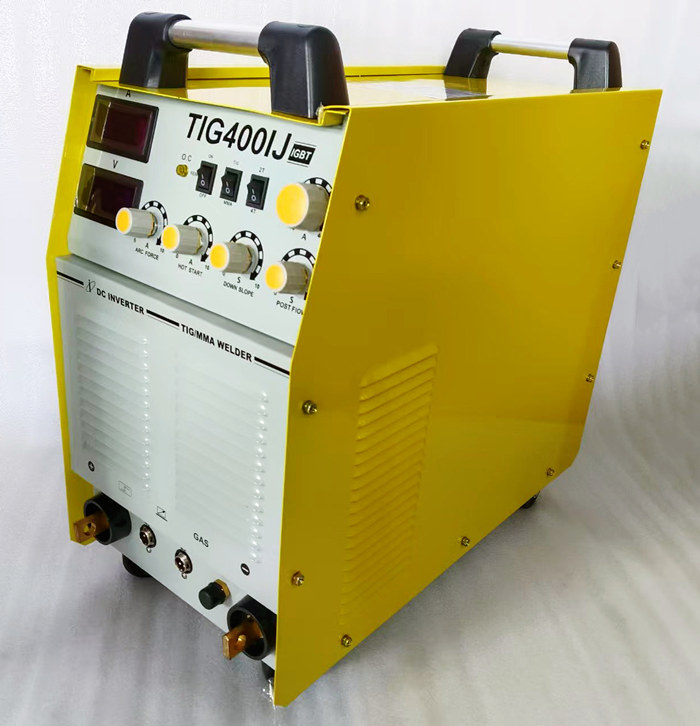

TIG 400 WITH IGBT MODULE TYPE




WITH 2T, 4T, DOWNSLOPE FUNCTIONS
